Home > POE Switch >

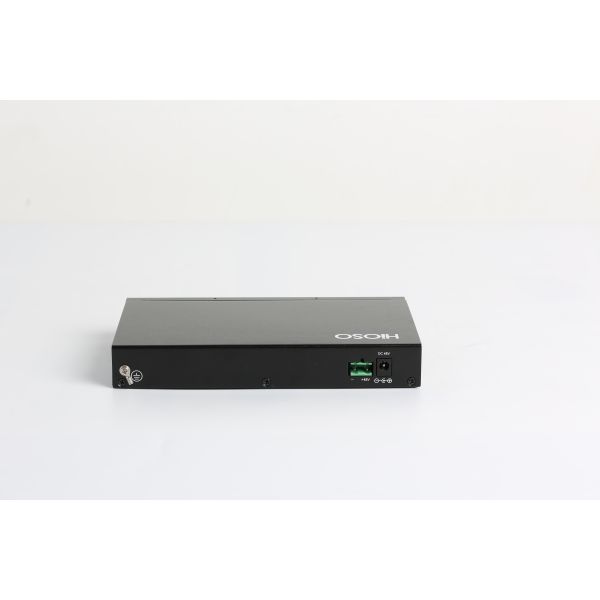

Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: Heat Dissipating IEEE8023af 154W 2 Fiber Ports POE Switch
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : FOWAY1209PF

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A

Supply Ability : 2000pcs/month

Delivery Time : 3-10 work days

Packaging Details : 38X24X18 CM

Item : Poe Switch

Poe : 8 poe ports

Port : 2 Fiber ports

Support : IP camera

MAC : 2K

storage : 1M

Contact Now

9 Port Ethernet Poe Switch 8 100M PoE Ports + 1 100M FX Port

Character

Support maximum 8 100M RJ45 PoE ports and 1 100M fiber uplink port
Each PoE port supports to auto discovery the standard power receiving devices
Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Support each 100M port full rate, full-duplex non-blocking forwarding
Support 2K MAC learning, 1Mbit storage and forward cache space, 2G back plane bandwidth
Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
Support to provide wall-mounted hanger better for installation if need, external power design and metal casing better for heat dissipating

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE	PoE ports: 8 Standard and power consumption:IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength	850nm/1310nm/1490nm/1550nm
Distance	multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 20/40/60/80/100/120Km
Port	8 100M PoE ports: 10/100Mbps 1100M FX uplink port: fiber port SC-100Mbps
MAC	2K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC48V
Power consumption	7W, PoE power supplying maximum 240W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Order information

Heat Dissipating IEEE802.3af 15.4W 2 Fiber Ports POE Switch
