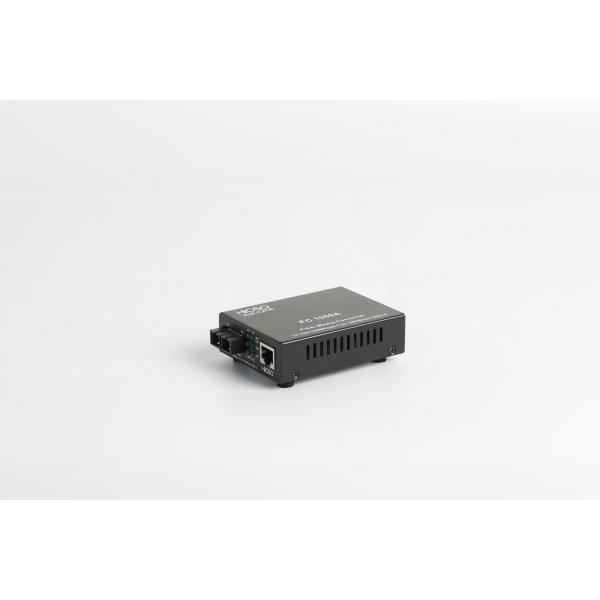

1 1000m Rj451 1000m Fx Port Fiber Media Converter , Gigabit Media Converter 2 Ports

Name: 1 1000m Rj451 1000m Fx Port Fiber Media Converter Gigabit Media Converter 2 Ports
Brand: Hioso
Price: 1 USD

Wholesale 1 1000m Rj451 1000m Fx Port Fiber Media Converter , Gigabit Media Converter 2 Ports from china suppliers

Brand Name : Hioso

Model Number : FC1000A

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/month

Delivery Time : 3-7 work days

Packaging Details : 25X15X12 cm

Name : Fiber Converter

MTBF : 100,000 hours

Power : DC5V

Ports : 1GE + 1SC

MAC address table : I K

Buffer space : 1 Mbit

Contact Now

2 Ports Gigabit Fiber Media Converter 1 1000m Rj45 + 1 1000m Fx Port

Overview
FC1000A 10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.

Technical Specification

Parameters	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1490nm/1550nm
Port	One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Dual-fiber multi-mode – SC (fiber size: 50,62.5/125μm) Dual-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion mode	Medium conversion, storing and forwarding mode
MAC address table	I K
Buffer space	1 Mbit
Delay	<1μs
Bit error rate	<1/1000000000
MTBF	100,000 hours
Power	DC5V/1A (external), AC220V/DC-48V (built-in)
Power consumption	2.5W
Operating temperature	-10~55°C
Operating humidity	5%~90%
Storage temperature	-40~80°C
Storage humidity	5%~90% (non-condensing)

1 1000m Rj451 1000m Fx Port Fiber Media Converter , Gigabit Media Converter 2 Ports

FAQ

Q: Can you offer technical support after purchase?

A: Our technical department will be 24h stand by to solve your concerns

Q: Do you accept small quantity order?

A: Yes, we do accept a sample order so customers can test the quality.

Q: What is your lead time for regular items?

A: Normal items, we will have stock to delivery ASAP, for OEM / ODM, PLS feel free to disuse them with our team.

Q: Do you offer distributorship aboard?

A: Yes, we are looking for a reliable business partner overseas market.

Q: What payment term can we provide?

A: Accepted Delivery Terms: FOB,CFR, CIF, EXW；

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;

Product Tags:

1000m Fx Port Fiber Media Converter

1000m Fx Port gigabit media converter

1 1000m Rj451 1000m Fx Port Fiber Media Converter , Gigabit Media Converter 2 Ports Images
