WiFi CCC Approval 1 PON SC Port EPON ONU For Huawei Zte Ftth Olt

Product Categories
HiOSO Technology Co., Ltd.
Contact Now

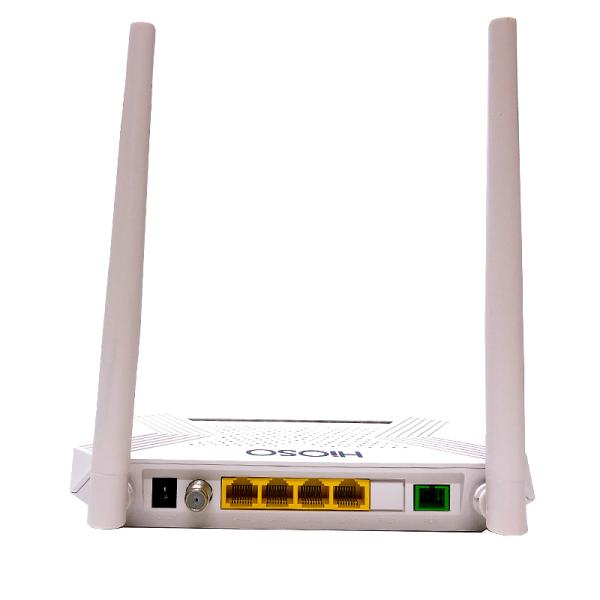

WiFi CCC Approval 1 PON SC Port EPON ONU For Huawei Zte Ftth Olt

  • 1
  • 2

Place of Origin : China, Guang dong

Brand Name : Hioso

Model Number : HA404WT

Certification : CE, RoHS, CCC

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 6000pcs/month

Delivery Time : 2-12 work days

Packaging Details : 30X25X15 CM

Type : FTTx Solutions

Use : FTTX

Product name : FTTH ONU

Application : FTTH FTTB FTTX Network

Material : plastic

PON : 1 PON SC port

Ports : 1 10/100/1000 M RJ45 port

Power supply : DC12V

Wavelength : TX 1310nm/ RX1490nm

Transmission Distance : 20KM

Warranty : 3 Years

Selling Units : Single item

Single package size  : 32X25X8 cm

Single gross weight : 0.600 kg

Package Type : Standard packing

Contact Now

EPON ONU 1G + 3FE + 1GE + CATV + WiFi Xpon Onu Supply Huawei Zte Ftth Olt
Feature

* Support ONU auto-discovery/Link detection/remote upgrade of software
* WAN connections support Route and Bridge mode
* Route mode supports PPPoE/DHCP/ static IP
* Support WIFI Interface and multiple SSID
* Support CATV interface for Video Service and control by OLT
* Support QoSand DBA
* Support port Isolation and port vlan configuration
* Support Firewall function and IGMP snooping/Proxy multicast feature
Parameter
Specification
PON Interface
1 G/EPON port(EPON PX20+ and GPON Class B+)
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength
TX: 1310nm, RX: 1490nm
Optical Interface
SC Connector
LAN Interface
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV Interface
RF, WDM ,optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: 0~-15dBm
MER: ≥32dB@-15dBm
Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED
11 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,Worn, Normal(CATV)
Push-Button
3,For Function of Reset, WLAN, WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%(non-condensing)
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
155mm×92mm×34mm(L×W×H)
Net Weight
0.24Kg
WiFi CCC Approval 1 PON SC Port EPON ONU For Huawei Zte Ftth Olt
FAQ

1. What is your MOQ?

Yes, our MOQ is 1.


2. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. But if you have your shiping agent, we’ll have a good cooperation with them.


3. What is your payment terms?
Usually, we can accept T/T, West Union or Paypal.

4. What is your warranty time
We promise 1 years warranty for all products shipped from us.
